BIM Course in Chennai
for Civil / Architect / MEP
Engineers

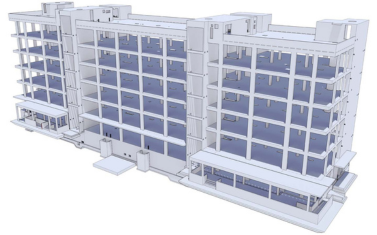

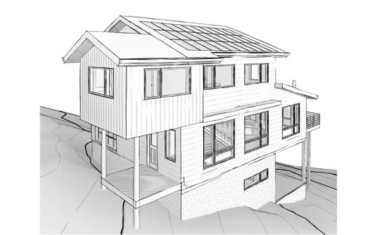

Model high-fidelity walls, structural columns, compound floors, stairs, and multi-tier roof systems.

Create parametric door, window, and furniture families using customized constraints and formulas.

Generate automated door schedules, wall area takeoffs, concrete volume counts, and export data reports.

Define photorealistic lighting, map high-res materials, run solar path studies, and record smooth virtual walkthroughs.

Modelling – Column, Structural Frame – Beam, Footing, Wall Foundation, Beam System, Opening

Steel Column, Structural Frame – Beam , Bracing, Structural Trusses , Purlin, Opening Tools , Groups

Views Creation, Sheet Placement, Import Export, Schedules, Manage, Template Creations

Model deep structural foundation systems, concrete grids, columns, shear walls, and structural slabs.

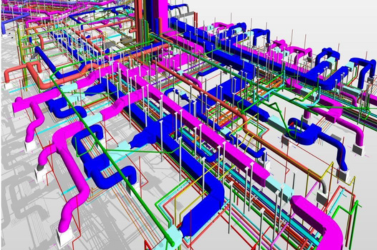

Route HVAC air ducts, position diffusers, size mechanical equipment, and verify duct pressure calculations.

Model conduits, route cable trays, place light fixtures, wire devices, and configure electrical distribution panels.

Design hot/cold domestic water distribution systems, route sanitary pipes, and configure system slope rules.

Map fire sprinkler pipes, model sprinkler heads, route valves, and size dry/wet standpipe networks.

Run multi-discipline collision audits to automatically identify hard and clearance clashes.

Link 3D models with project schedules (MS Project/Primavera P6) to generate construction sequence animations.

Extract detailed architectural, structural, and MEP quantities from merged model files for cost tracking.

Export formatted coordination files, record viewpoint snapshots, and generate HTML/PDF coordination reports.

Import raw LiDAR scan files, stitch coordinates, and run range registration filters in Recap Pro.

Import point cloud models into Revit, coordinate elevations, and model exact structural objects based on scan geometry.

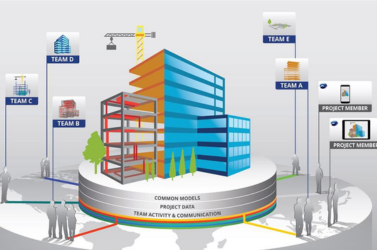

Establish cloud worksets, initiate central cloud synchronization, and set up coordinate references in ACC.

Manage review approvals, create folder security policies, track RFIs, and configure ISO file naming formats.

Export sheets in batches, import excel lists for parametric updates, and manage sheet revisions using DiRoots plugins.

Create custom ribbon tabs, execute batch warnings cleanups, and write script shortcuts utilizing pyRevit API calls.

Drawing templates, sheet sizes, title blocks, annotation, dimensions, layers, and drafting standards.

Write visual check templates to verify model stability, identify file bloating, and ensure BIM execution standards.
